Manual folding booth bus spray booth gas heating

Manual folding booth specification				PG-2022050009
Room size	Inner size	17000×5000×5000(L×W×H)
	Outer size	21000×5560×5260 (L×W×H)
Room	Structure	Paint shed for folding square pipe splicing skeleton, using high strength flame retardant PVC coated plastic cloth connection. The steel frame skeleton slides on the ground through the bottom pulley, so that the paint shed shrinks and opens (with cross arm connection), with telescopic closing function, so that the workpiece is taken and placed.
	Roof panel	High strength flame retardant PVC coated plastic cloth
	Ventilation system	Air intake by naturally from front part, back wall for extraction.
Main door	Structure	Electric door
	Qty	Door :5000×5000mm(W×H),1 set ；
Air return cabinet	Structure	It is made of profile and steel plate, galvanized steel plate with δ=0.8mm inside and outside, rock wool insulation material in the middle, spraying treatment on the outside;
	Qty	1 set
Exhaust system	Fan specification	4-72-10C,air capacity:32000m³/h,full pressure:1400Pa,
	Motor	Power:18.5KW,
	Driving mode	Belt drive
	Qty	Each group 18.5KW, 2 set, total air capacity: 32000m³/h
	Noise	≤85dB
Lighting system	Ceiling light	14×1=14×20 W,LED；
	Installation Method	Top mounted horizontally
	Lighting box type	ATEX motor
	Specification	≥500LUX；:280W
Filter system	Air return filter	Maze filter paper + glass fiber filter
Air duct	Material	Made by δ=0.8 galvanized steel plate.
	Qty	8pcs straight pipe, one rain hat
Control system	Material	Turning type
	Control system	start
	Function	Painting ,lighting, emergency stop, failed alarm, time accumulator.
Voltage	380V,50HZ,3P		Max temperature		Room temperature
Air speed	≥0.35m/s		Rated power		20KW
Color	White or blue for option

This is Customer-made Industry Spray Booth base on customer's require.Workshop space.
Produce Capacity.Contact us if you have require.we can design to full fill your require.

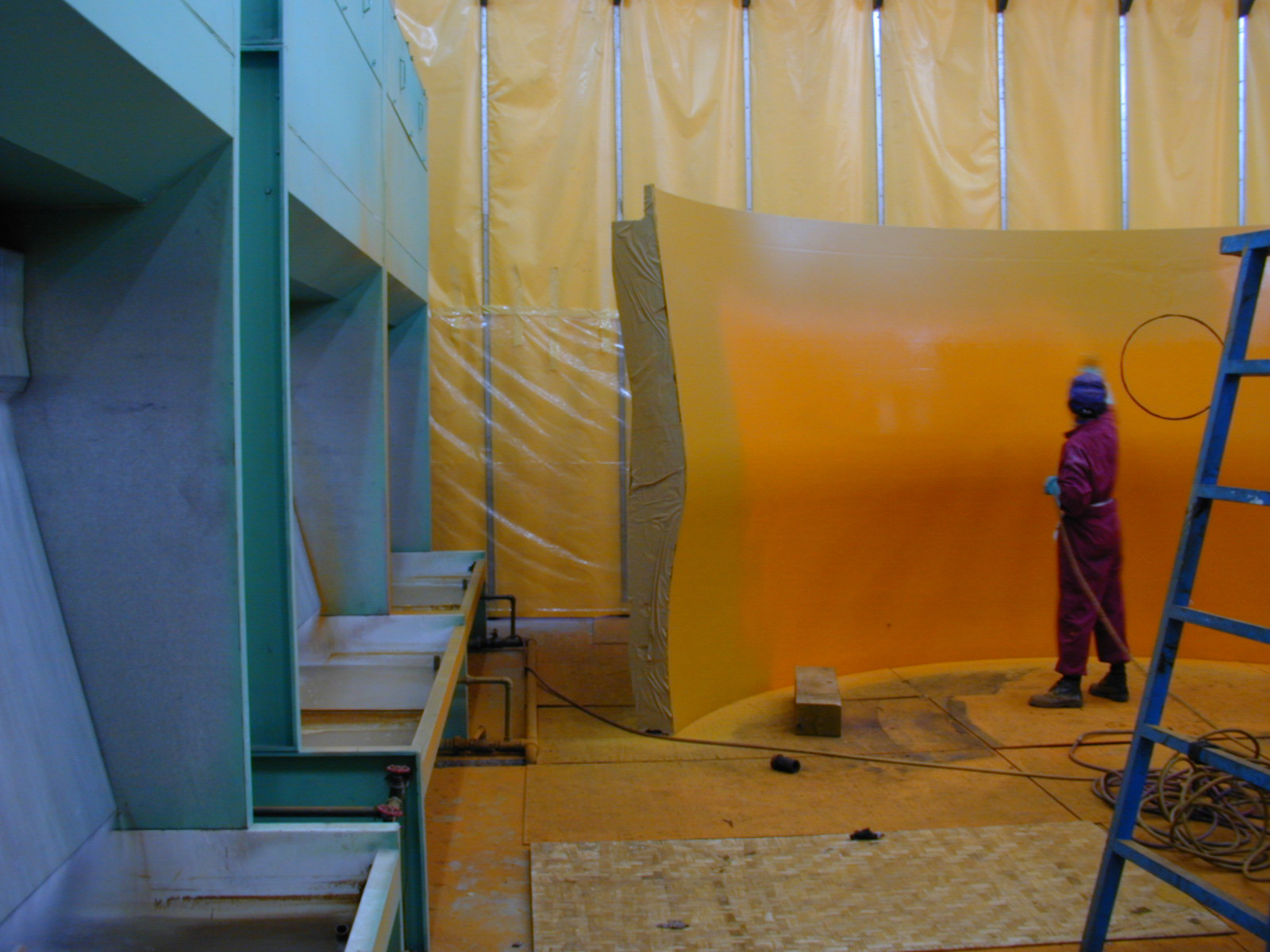

The follow Project is in Dandong ( A very big State-owned enterprise made Airports
and bridges project)





Some of our Project.


----------------------------------------FAQs-----------------------------------------

Are you Trade company or manufacturer?

We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.

How can we cooperation?

How can we cooperation?
1. Turn Key Project:
Our company will be responsible to help you to do the production line desing,manufacturing,installation,
debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
production facilities procurement.
2. Equipment Supply:
Our company will not only provide you the equipments,but also will offer you the onsite installation
instruction and guidance as well.
How about after sale serivce?

1. Provide technical support and production line upgrade
2. Feedback withini 12h after receive fault notification or service requirement
3. Free training on the user’s manual
4. User-friendly English manual or operation video for machine using and maintanence.
5. One Year Gruantee.

Guangdong Jingzhongjing Industrial Painting Equipment Co., Ltd belong to JingzhongJing(JZJ) Group

company was set up in 1999, now is a large comprehensive company which specialies in the design,

manufacture,Sales, service for Pre-treatment, Painting lines, Exhaust Gas treatment equipments and other

New design productfor military-civilian dual-use equipment ect.

Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect; Sand Blasting

Room/Shot Blasting Room/Power Coating/Painting line, Exhaust gas(Vocs treatment equipment for all kind

of Industry Product, foldable field camping cabin and intelligent disinfection Channel ect.



Baozhongbao(BZB) Jingzhongjing(JZJ)



1) Guangdong Jingzhongjing Industrial Painting Equipment Co., Ltd (In Guangzhou, Since 1999), which

Cover 30, 000 M2, with 218 staff, Main Product: Spray booth and preparation room for Auto/Bus/Truck/Boat

/Aircraft and all different industry, Auto sheet-metal line, Water Test line. Power coating line, focus on the

producing for oversea market and the annual output up to 1500 sets equipments.

2) Jiangsu Jingzhongjing Industrial Painting Equipment Co., Ltd (Jiangsu, Since 2007), which Cover 120, 000 M2,

with 328staff, Main Product: Shoting blasting, Degrease metal pre-treament, Different king of large Painting line.

UV light, RCO, RTO, Voc environmental protection equipment, foldable field camping cabin and intelligent disinfection

Channel. Focus on the producing for big project and new product development, the annual output up to 2000 sets

equipments.

Guangzhou Shinely Import and Export Trade Co., Ltd, which was set up in 2013. Shinely is the official trade

branch of Jingzhongjing Group and 100% belong to Jingzhongjing Group. Now Shinely have more than 30

staff, including sales team, technical team, financial team, Oversea installation and after service team.

Except sale our own product,We also provide quality services for integrating the export of other products.



We are the Biggest authorised Equipment Supplier of 36 Car brands 4S Shop in China, such as Volkswagen,

Audi,Mazda, Citroen, Peugeot, Honda, Toyota, BWB, Ford and Nissan ect. We also export to more than 80

coutries all over the world, such as the USA, Japan, Russia, Australia, Canada, Germany, Korea, Thailand,

Malaysia, Singapore, Vietnam, Pakistan, UEA ect.

Combining advanced technology, high-quality components and excellent support, JingzhongJing(JZG) Group

provides industry-leading spray booths and finishing equipment for a wide variety of industries - including

aerospace,automotive refinish and industrial manufacturing. Our spray booths and finishing equipment are

expertly designed for superior performance and longevity.

With the development of the company, the technology research and development capabilities continue to

improve,our company continues to maintain the development and manufacture of related products to meet

market require.
