    Customized Bus Spray Booth With Fan On Top Side Exhaust Paint Room

    Ask Lasest Price
    Brand Name : BZB
    Model Number : BZB-EX23
    Certification : CE,TUV
    Price : USD20000-50000 Per Unit
    Payment Terms : TT or LC
    Supply Ability : 2000sets Per Year
    Delivery Time : 30-90
    • Product Details
    • Company Profile

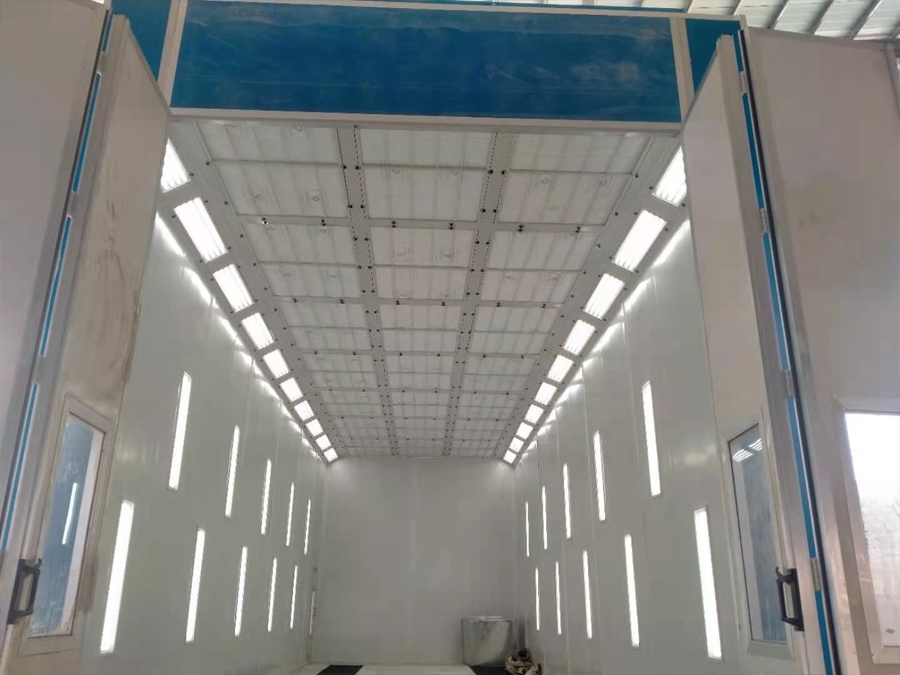

    Customized Bus Spray Booth With Fan On Top Side Exhaust Paint Room

    Customied Bus Spray Booth with Fan on Top Side Exhaust Paint Room


    Maint Specification :


    The follow specification just one standard size for reference.



    Inner dimension

    15000×5000×5000mm(L×W×H).

    external dimension


    15144×6896×5600mm(L×W×H).
    basement2 basements.single one size:13000×840 mm(L×W)
    front doorSide opening door,4 doors,4000×4500 mm(W×H),color:white
    operation door2 doors,700×2000mm(W×H),color:white
    wall3 Steel reinforcements in the wallboard,3 Steel composite beams in roof.wallboard thickness:70mm,width:1150mm,filled with EPS.two color plate:0.476mm,color:white
    lampsTop lamps:18*4=72,36w.bottom lamps:14*4=56,36w,(left/6,right/6,back/2)
    structureAir-in from the roof,Square pipe steel framework

    Air-in blower:4 Double inlet air centrifugal fans.technical parameters of each one:model:YDW5.6M,power:5.5KW,capacity:15000m3/h.

    Air-out blower:2 Double inlet air centrifugal fans,technical parameters of each one:model:DKF,power:11KW,capacity:36000m3/h.belt drive

    heating system2 Riello G20 burners,2 sets of stainless steel heat exchanger,2 electric throttle perform spray paint cycle.maximum calorific value:400000Kcal/h.

    filtration system


    Primary filter, advanced filtering, glass cotton filter,M type activated carbon filter and single-layer flat drive fiber glass filter.
    roofGalvanized sheet bending roof
    control systemSpray paint,lacquer that bake of temperature, drying time setting, lighting switch, failure indicator, temperature controller. The power switch, stop switch. With temperature limiter.

    voltage frequency


    1×220 3×380 50HZ
    maximum working temperature80℃
    wind speed≥0.25m/s
    total power49KW

    Product Application


    We offer different kind of big spray booth according to customed requrie.The follow project is for Yotong Bus in Pakistan.

    Fan on top and full down draft Paint booth system.



    About Us:
    JingzhongJing(JZJ) Group company was set up in 1999,now is a large comprehensive company which
    specialies in the design,manufacture,sales,service for Pre-treatment,Painting lines and Exhaust Gas
    treatment equipments.
    Main Product:
    Spray booth/Preparation room/Water testing line for Car/Bus/Truck/Train/Boat/aircraft ect;Sand Blasting
    Room/Shot Blasting Room/Power Coating/Painting line,Exhaust gas(Vocs treatment equipment for all kind
    of Industry Product ect.
    Two Produce Base:
    China South Produce Base (In Guangzhou,Since 1999)


    China North Produce Base (Jiangsu,Since 2007)

    Some of our Project.


    ----------------------------------------FAQs-----------------------------------------

    Are you Trade company or manufacturer?

    We are the manufacturer with export liscence.We have two factory in Guangzhou and in Jiangsu,China.

    How can we cooperation?

    How can we cooperation?
    1. Turn Key Project:
    Our company will be responsible to help you to do the production line desing,manufacturing,installation,
    debugging and your personnel trainging jobs,Also we will provide you one-stop service for your
    production facilities procurement.
    2. Equipment Supply:
    Our company will not only provide you the equipments,but also will offer you the onsite installation
    instruction and guidance as well.
    3. Other coopeation style.
    Keep flexible and discuss.

    How about after sale serivce?

    1. Provide technical support and production line upgrade
    2. Feedback withini 12h after receive fault notification or service requirement
    3. Free training on the user’s manual
    4. User-friendly English manual or operation video for machine using and maintanence.
    5. On-the spot trainging and installation can be met if required.
    6. On time delivery.
    7. One Year Gruantee.
